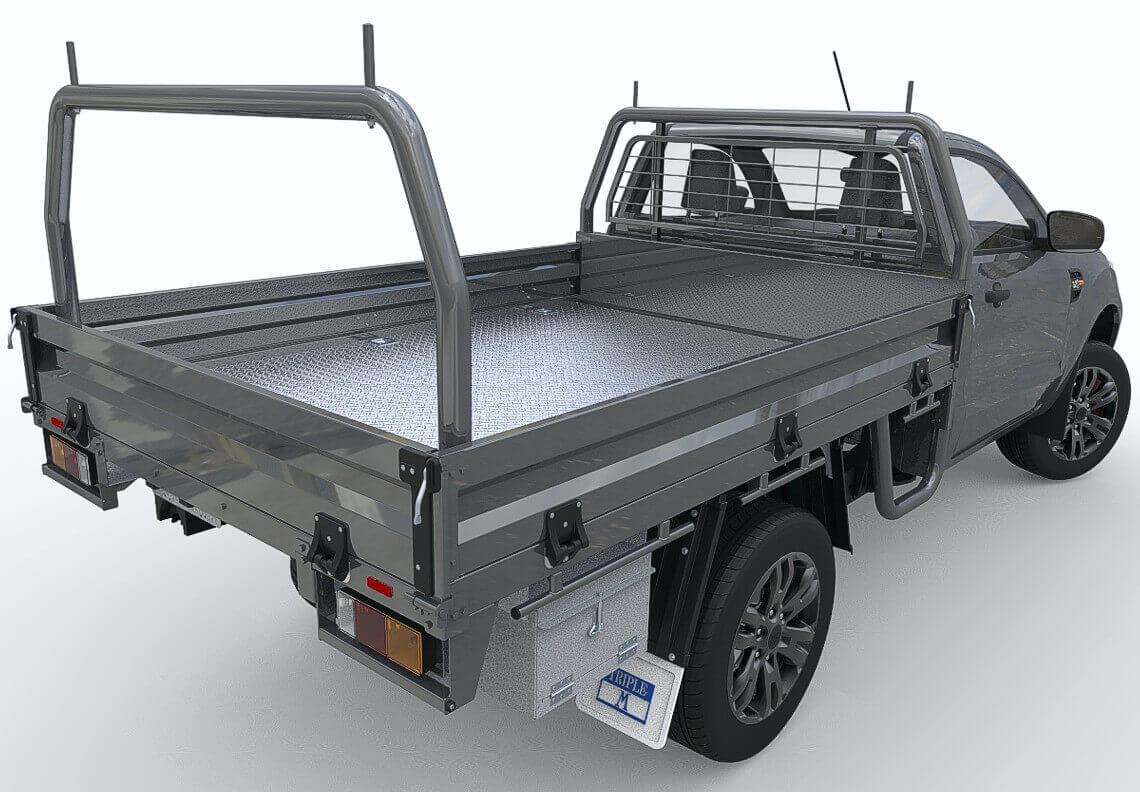

STEEL UTE TRAYS
STEEL UTE TRAYS
Rear rack is easy to remove and rated up to 150kg combined load between the headboard & rear rack.
Available in 40×40 square tube or 63mm round tube.
Racks come standard with “ears” to retain the load. Racks are painted if ordered with the tray.
A painted finish can be optioned at point of sale to colour match the tray body to the vehicles body colour.
All Triple M steel tray bodies are manufactured from galvanised & zinc plated hardware to provide maximum corrosion protection. The advantage of this is that if for some reason through wear & tare, the paint layer is breached, the underlying galvanised surfaces will prevent corrosion.
Triple M utilises an etch primer to ensure maximum adhesion with the galvanised & zinc plated surfaces. Colour & clear coats are then applied to complete the process.
Headboard Options Close
- 63mm Tube Headboard – comes standard with window protector.
- 40×40 Bow Headboard – integrated welded mesh provides protection for the rear window.
Internal Load Restraint Points
Internal load restraint points allow loads that are lower than the dropsides to be restrained effectively.
Ropes or straps do not need to pass over dropsides when restraining loads. This allows maximum down force to be applied to the load.
* Only offered on some tray models, Contact our sales team for further information.
Deck Options Close
- 3mm Checker Plate Floor.
- 3mm Galvanized Flat Floor.
Rubber Tray Mat Close
Available in Black;
- 2523mm x 1810mm x 4mm
- 2400mm x 1920mm x 4mm
Note: Tray Mats are offered as an accessory only.
Water Tank Close
CAPACITY – 23L
Contact our sales team for compatibility.
Dropside Support Close
The dropside support kit provides rigidity to the dropside when the tailgate is down.
Contact our sales team for further information.
Tail Light Protector and Wiring Guard Close
The tail light protector and wiring guard provides protection to the vehicle’s tail lights and wiring.
QuickLock Hinge Close
Manufactured from a High Strength automotive grade polymer which has excellent impact strength characteristics.
Designed with smooth transitioning radii and no sharp external edges for increased safety.
Includes a stainless steel pivot pin.
Traditional dropside hinge designs require an additional pin or E clip to prevent the dropside from detaching from the hinge pins. Over time these pins or clips can be lost or discarded by the owner. The Quick Lock hinge has this safety feature integrated into the design eliminating the need for additional parts that can get lost over time. This feature ensures the product is always safe.
Available in Large and Small sizes.
Contact our sales team for dimensions and compatibility.
PP Mudguard Close
Manufactured from an automotive grade rubber modified polypropylene. This material has excellent memory characteristic’s so when it is deformed it will return to its moulded shape.
High impact strength at sub zero temperatures while maintaining excellent rigidity at ambient temperatures. Stabilized to meet automotive exterior weathering requirements.
Designed with smooth transitioning radii and no external sharp edges for increased safety. No corrosion from stone pecking.
Quick Hitch Rope Rails Close
The “Quick Hitch” Rope Rail allows for load to be secured faster, as the rope only has to pass through the center of the rail once.
Front Step Options Close
Practical and ergonomically allows better access onto the tray body.
- Tube Headboard
- 63mm Angled Stirrup
- 63mm Square Stirrup
- Bow Headboard
- Corner Step
